v-innovate Technologies can provide mass spectrometry-based services to accurately and rapidly quantify and analyze serine in plants. Our methods can be used to efficiently evaluate the effect of serine on plant growth and metabolism, and provide a clear indicator for the related research of serine in plants.

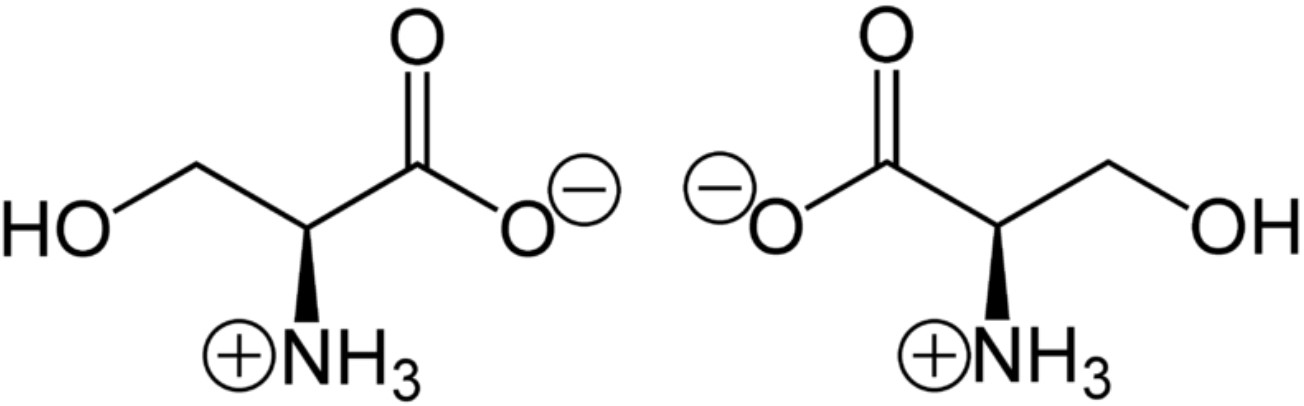

Figure 1. (S)-Serine (left) and (R)-serine (right) in zwitterionic form at neutral pH
Serine (Ser) is an amino acid used in protein biosynthesis. It contains an a-amino group, a carboxyl group, and a hydroxymethyl group that is considered as a side chain. It is one of the naturally occurring proteinogenic amino acids that are indispensable for metabolism with its role in the biosynthesis of purines and pyrimidines. In plants, the existence of different pathways of Ser biosynthesis has given its fundamental role in plant metabolism and development, such as the photorespiratory glycolate pathway. Further research is still needed to determine the exact contribution of each Ser metabolism pathway in different plants under different environmental conditions.
To detect serine in plant cells, certain methods can be used. High-performance liquid chromatography (HPLC) and gas chromatography(GC) can separate serine from other amino acids in the cell, based on its physicochemical properties. Mass spectrometry can then be used to arrange amino acids with different molecular masses in order. Finally, after comparing the molecular mass, the concentration of serine can be accurately determined. In short, serine in plants can be analyzed quickly using our serine analysis platform.
After sample harvesting and preparation, the first crucial steps in metabolomics, our analysis platform equipped with GC-MS and LC-MS can provide a deep understanding of metabolic regulation occurring in plant cells. Once the samples have been analyzed, automatic data processing tools are required for peak picking and mass peak alignment.

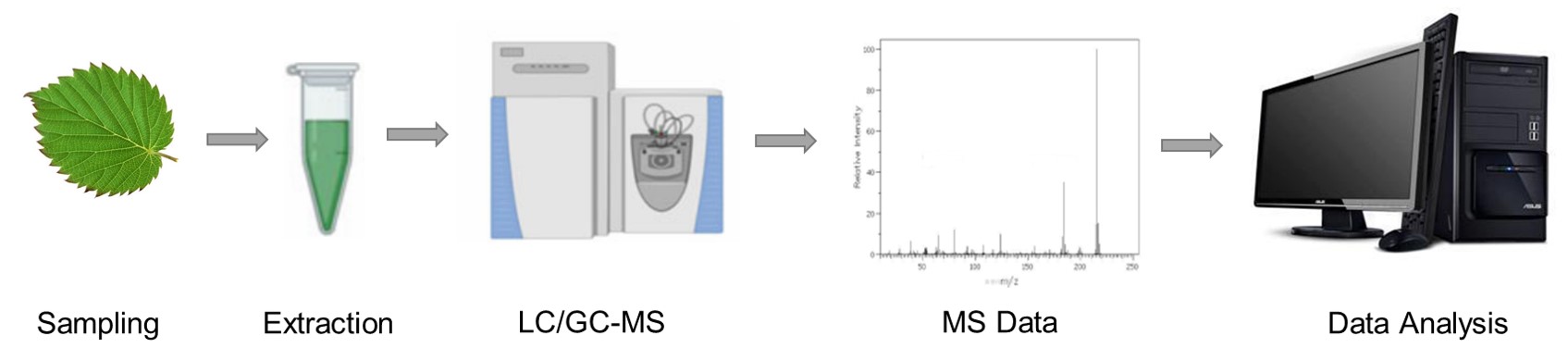

Figure 2. Serine analysis service workflow.
Quantification methods: external reference method or isotope-labeled internal standard method
Mode: MRM, capable of simultaneously detecting more than 1000 MRM ion pairs
Precision: ≤10-9 g
Positive/Negative polarity switching time: ≤20 ms, allowing for the acquisition of Q1/Q3 MRM transition mass spectra in both ionization modes from a single LC-MS/MS run.
1. Fresh plant tissues from leaf, flower, stem, root, or fruit: >1 g. Provide young plant tissues to yield the best results. Samples should be frozen in liquid nitrogen immediately after collection, and then transferred to -80°C for storage.
2. Plant seeds.
At least 3 biological replicates.
Our technology platform uses mass spectrometry to detect serine content in plants, and it is fast, efficient, and low-cost. The protocols can be adapted when handling a large number of plant samples. The flexible statistical analysis and bioinformatics analysis will produce reliable data for plant cell analysis.
