Auxin Analysis Service

Online Inquiry

v-innovate Technologies provides mass spectrometry (MS)-based methods to analyze auxins in plants. This high-throughput approach has sufficient robustness, sensitivity, and high resolution for the identification and quantification of auxins. It can help researchers efficiently explore the roles of auxins in plant development and their applications in agriculture and food safety.

Overview

Auxins are a class of plant hormones found in shoot and root tips, promoting cell division, stem and root growth. Auxins play important roles in plant body development, indicated by their stimulation of shoot elongation and root branching, promotion of fruit development, as well as regulation of seedling orientation. Besides, epidermis-localized auxins trigger leaf and flower initiation. Auxins and their synthetic cousins have been applied to boost plant growth and kill weeds due to their vital roles in plant development. However, it is not well understood how endogenous auxin influences plant growth and development. Phytohormone analysis is challenging due to its trace concentration and the complexity of plant extracts. Fortunately, the advent of analytical techniques, ultra-fast liquid chromatography (LC) coupled with high-sensitivity tandem MS (LC-MS/MS), can solve some of the problems associated with plant hormones analysis. Optimized extraction and purification steps can also increase the sensitivity of the analytical method. MS-based methods are high-throughput and particularly sensitive for analyzing plant samples.

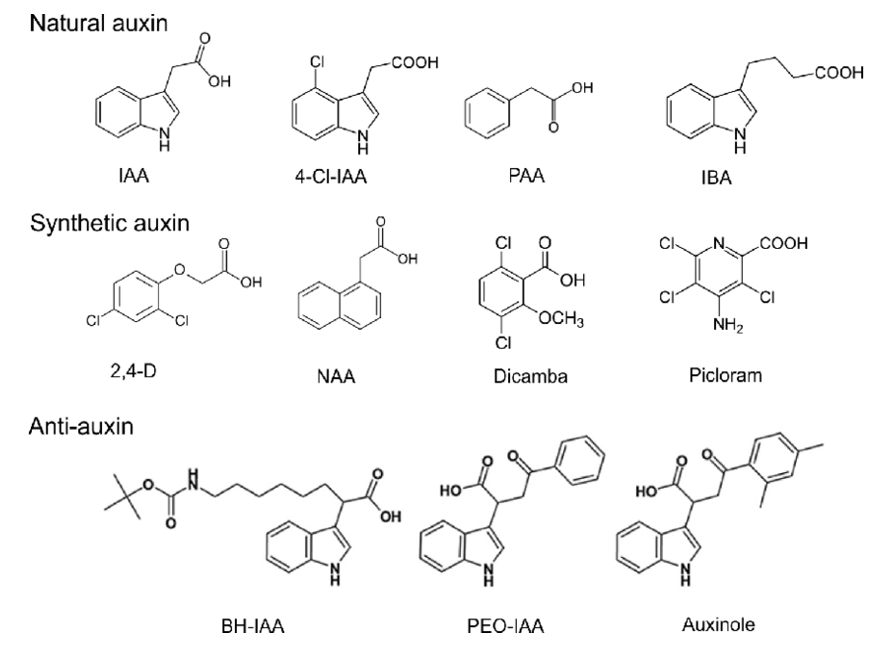

Figure 1. Chemical structures of natural and synthetic auxins, and of anti-auxins (Dhurvas 2015).

Applications of Auxin Analysis

Improve understanding of auxin metabolism
Ensure food safety
Reveal mechanisms of plant growth and development
Crop improvement

Advantages of Our Auxin Analysis Service

Rich experience in plant sample handling and auxin analysis

Enable detection and characterization of IAA, IBA, ME-IAA, ICA, and NAA

Accurate detection and quantification of auxins with LC-MS platforms

Flexible statistical analysis and bioinformatics analysis

Fast turnaround times and affordable prices

Service Workflow

Our newly developed sample preprocessing method provides safety, environmental protection, rapidness, effectiveness, and recovery rates consistently exceeding 85%. Sample preprocessing at v-innovate Technologies complies with the in-house standard operation procedures (SOP), ensuring maximized homogeneity between samples.

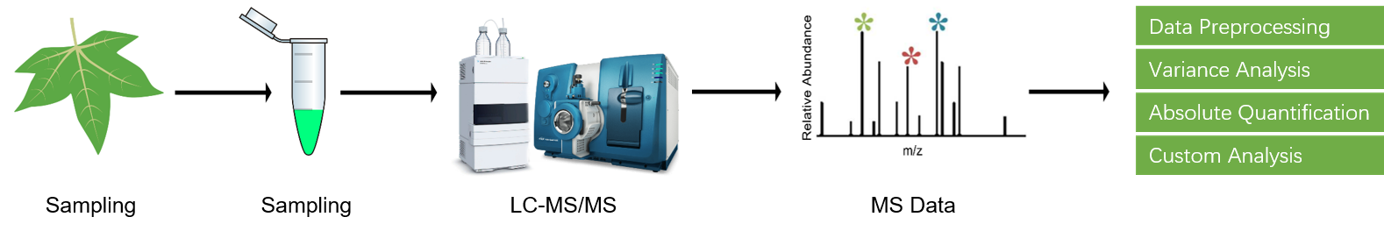

Figure 2. Auxin analysis service workflow.

Quantification methods: external reference method or isotope-labeled internal standard method

Mode: MRM, capable of simultaneously detecting more than 1000 MRM ion pairs

Precision: ≤10^-9 g

Positive/Negative polarity switching time: ≤20ms, allowing for the acquisition of Q1/Q3 MRM transition mass spectra in both ionization modes from a single LC-MS/MS run.

Analysis content:

Standard curve creation
Raw data preprocessing
Absolute quantification of auxins
Differential metabolite screening
Optimal analyses such as KEGG pathway analysis and hierarchical clustering

List of Detectable Auxins at v-innovate Technologies

Detectable Auxins	CAS	Quantification Methods
Indole-3-acetic acid(IAA)	87-51-4	External reference method / isotope-labeled internal standard method
Indole-3-butyric acid(IBA)	133-32-4	External reference method / isotope-labeled internal standard method
Indole-3-acetic acid methyl ester(ME-IAA)	1912-33-0	External reference method / isotope-labeled internal standard method
indole-3-carboxylic acid (ICA)	771-50-6	External reference method / isotope-labeled internal standard method
1-Naphthalene acetic acid (NAA)	86-87-3	External reference method / isotope-labeled internal standard method

Sample Requirements

1. Fresh plant tissues from leaf, flower, stem, root or fruit: >1 g. Please provide young plant tissues, if possible. Samples should be frozen in liquid nitrogen right after collection, and then transferred to -80°C for storage.

2. Plant seeds.

At least 3 biological replicates.

Deliverables:

Experimental procedure
Parameters of liquid chromatography and MS
Extracted mitochondria and purified protein sample
Purity analysis report
MS raw data files and MS data quality checks
Metabolites quantification data
Overall auxin analysis report

Mass spectrometry-based profiling of plant hormones enables quantitative analyses of plant hormones in a faster, more convenient, and more sensitive manner. With decades of experience in mass spectrometry services, v-innovate Technologies has a proven track record supporting diverse plant hormones detection and quantification. We can meet your specific project requirements, from sampling to bioinformatics.

References

Hu W, Fagundez S, Katin-Grazzini L, et al. Endogenous auxin and its manipulation influence in vitro shoot organogenesis of citrus epicotyl explants.Horticulture research, 2017, 4(1): 1-6.
Pěnčík A, Casanova-Sáez R, Pilařová V, et al. Ultra-rapid auxin metabolite profiling for high-throughput mutant screening in Arabidopsis. Journal of Experimental Botany, 2018, 69(10): 2569-2579.
Dhurvas Chandrasekaran D. High-resolution NMR structure and functional studies of the oligomerization domain of PsIAA4, an auxin-inducible transcriptional repressor from pea (Pisum sativum). 2015.DOI: 10.13140/RG.2.2.27146.36809.
